Bale Wrap remote control kit

Bale Wrap remote control kit

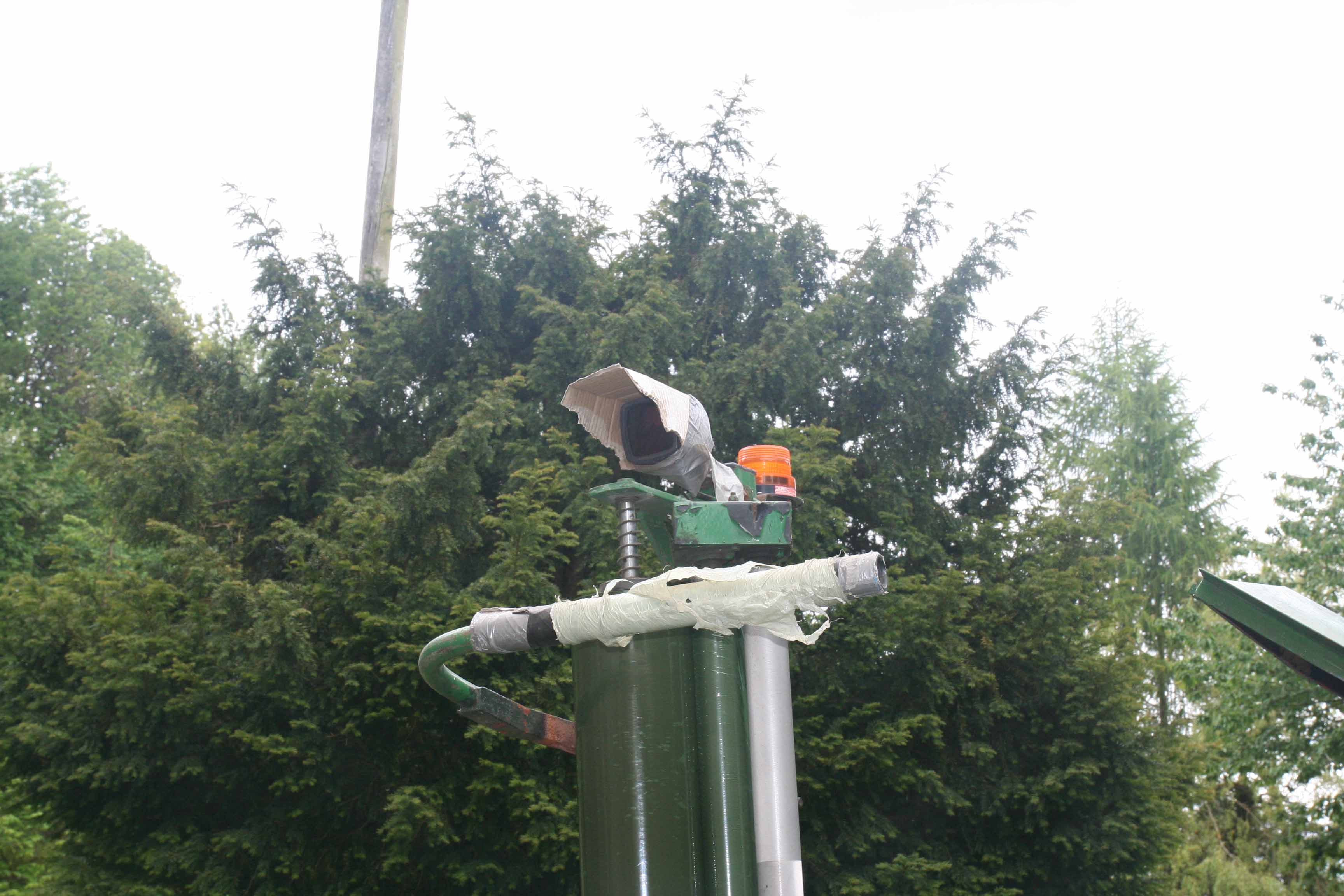

Over the years we have seen many problems with infra-red remote wrap controls. These usually stem from either sunlight interfering with the optical signal or degredation of the screen/light transmitters.

Usually we have been set the task of repairing the handsets and controls, until we had the idea to design a replacement.

This design was to be a simple handset and receiver box that used RF instead of light beams. With simple robust handset and replaceable battery which included for safety reasons, a two button press to start the wrap.

This handset proved very popular with local trade farmers.

After a redesign to a smaller simple receiver box we have decided to release for general internet sale.

Safety Aspects. Two button start control. Distance control no more close up switching to the receiver.

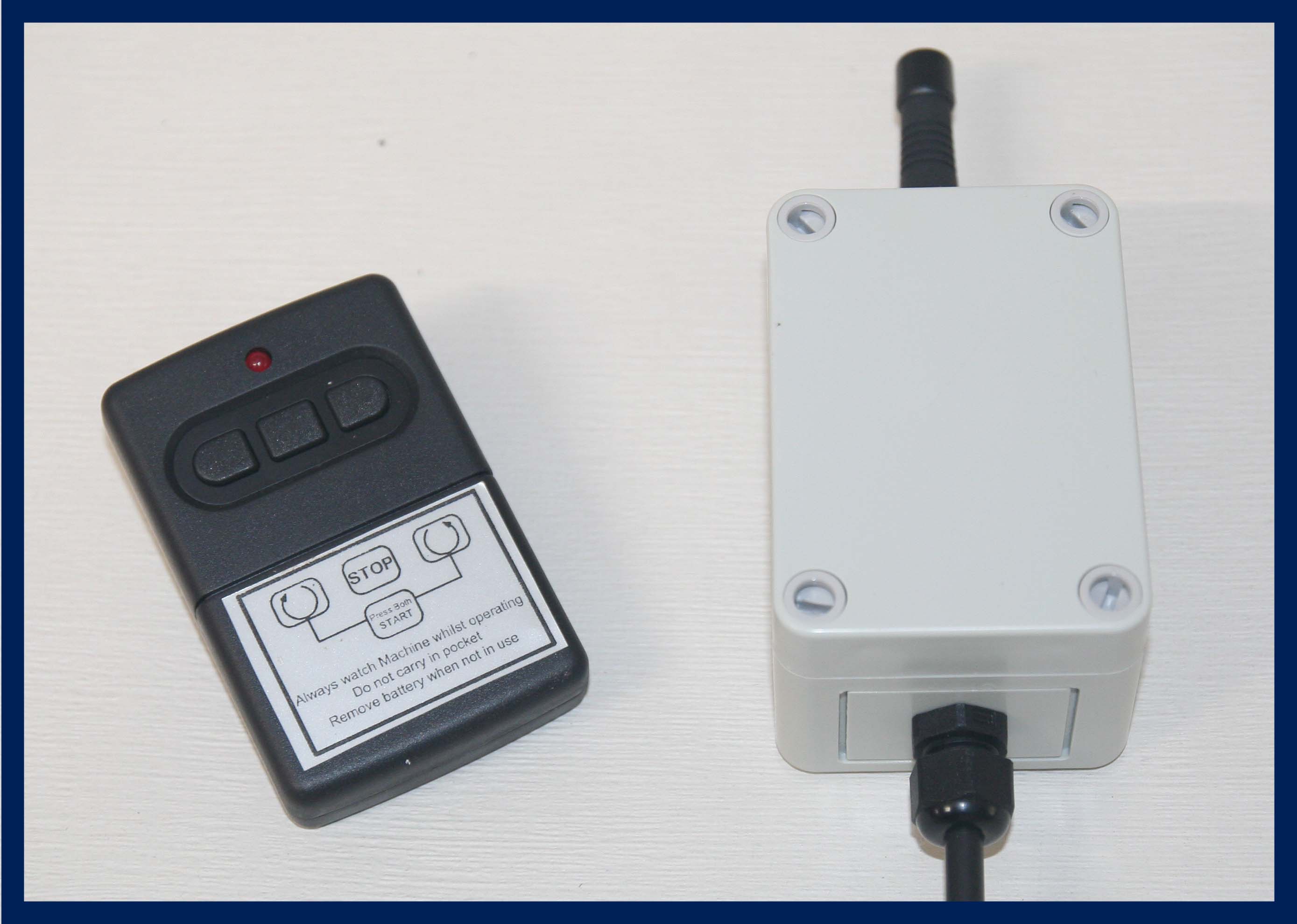

New Style.

Small receiver box with stubby antenna.

Gives up to 30m range with good control.

Simple 3 button handset for four functions.

Start Wrap - Two button press

Stop Wrap

Rotate Left and Right

New Style McHale Wrap Control

• Simple plug in solution, 9 pin connector on base.
• Set the control to IR remote, as ours mimics IR.
• No sunlight problems again, simple 4 function remote.
• Example here shows old style large reciever box, now small as below.

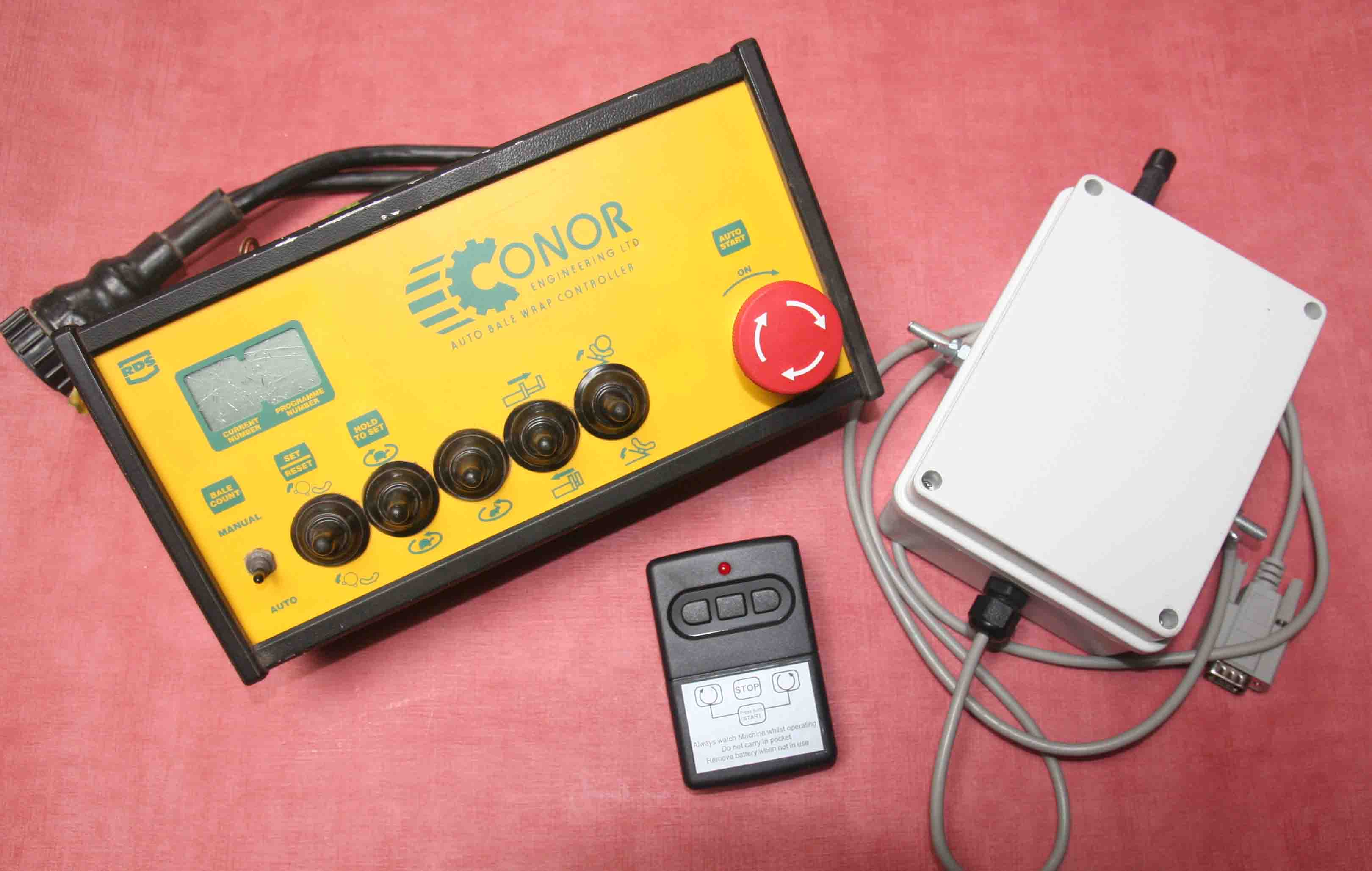

Connor Wrap Control

• Simple plug in solution, 9 pin connector on base.
• Works straight from the box.
• No sunlight problems again, simple 4 function remote.
• Example here shows old style large reciever box, now small as below.

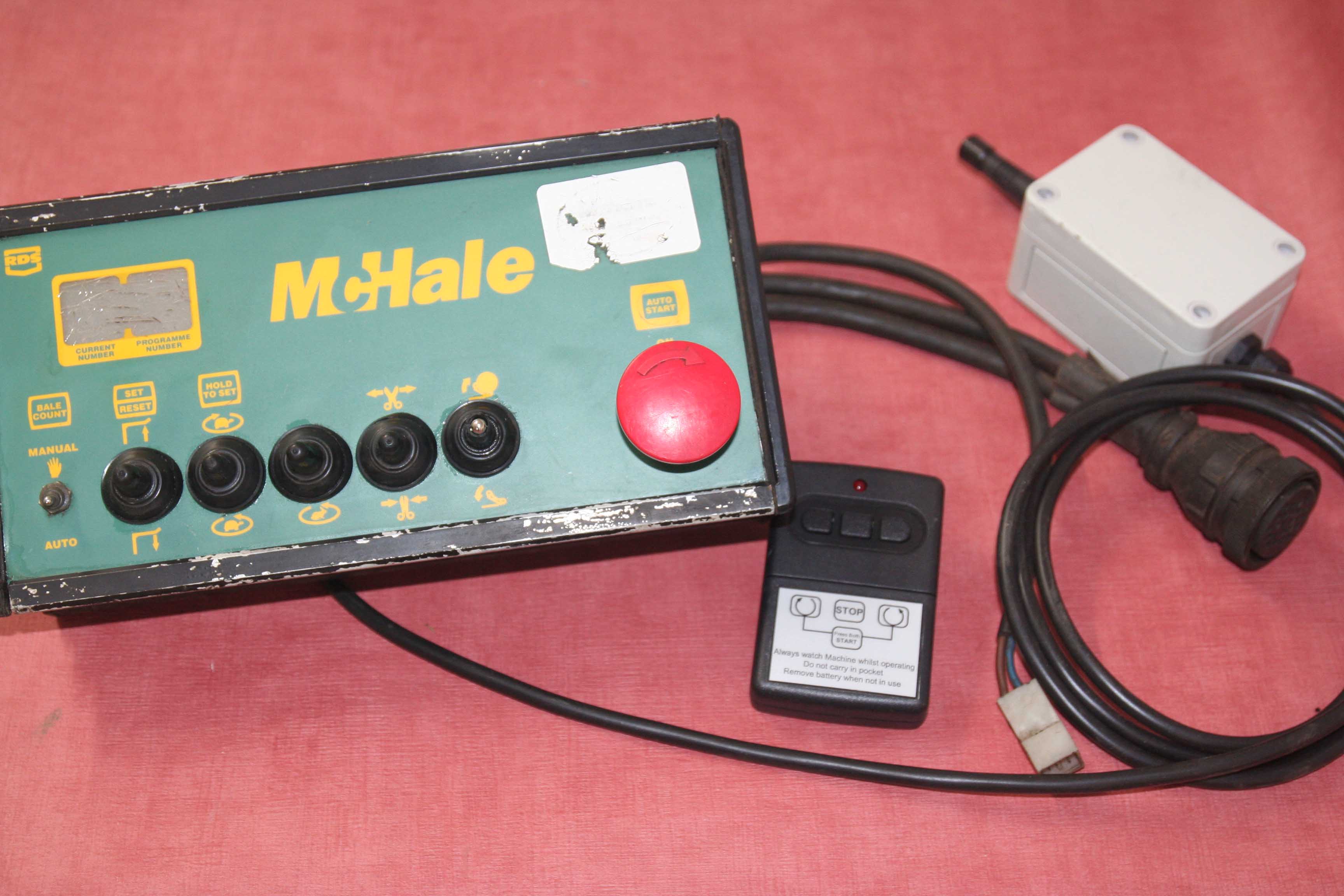

Older McHale Wrap Control

• Simple plug in solution, 9 pin connector on base.
• Works straight from the box.
• No sunlight problems again, simple 4 function remote.
• Example here shows new style large reciever box.

Tanco Wrap Control

• Simple plug in solution, 9 pin connector on base.
• Works straight from the box.
• No sunlight problems again, simple 4 function remote.
• New style large reciever box.

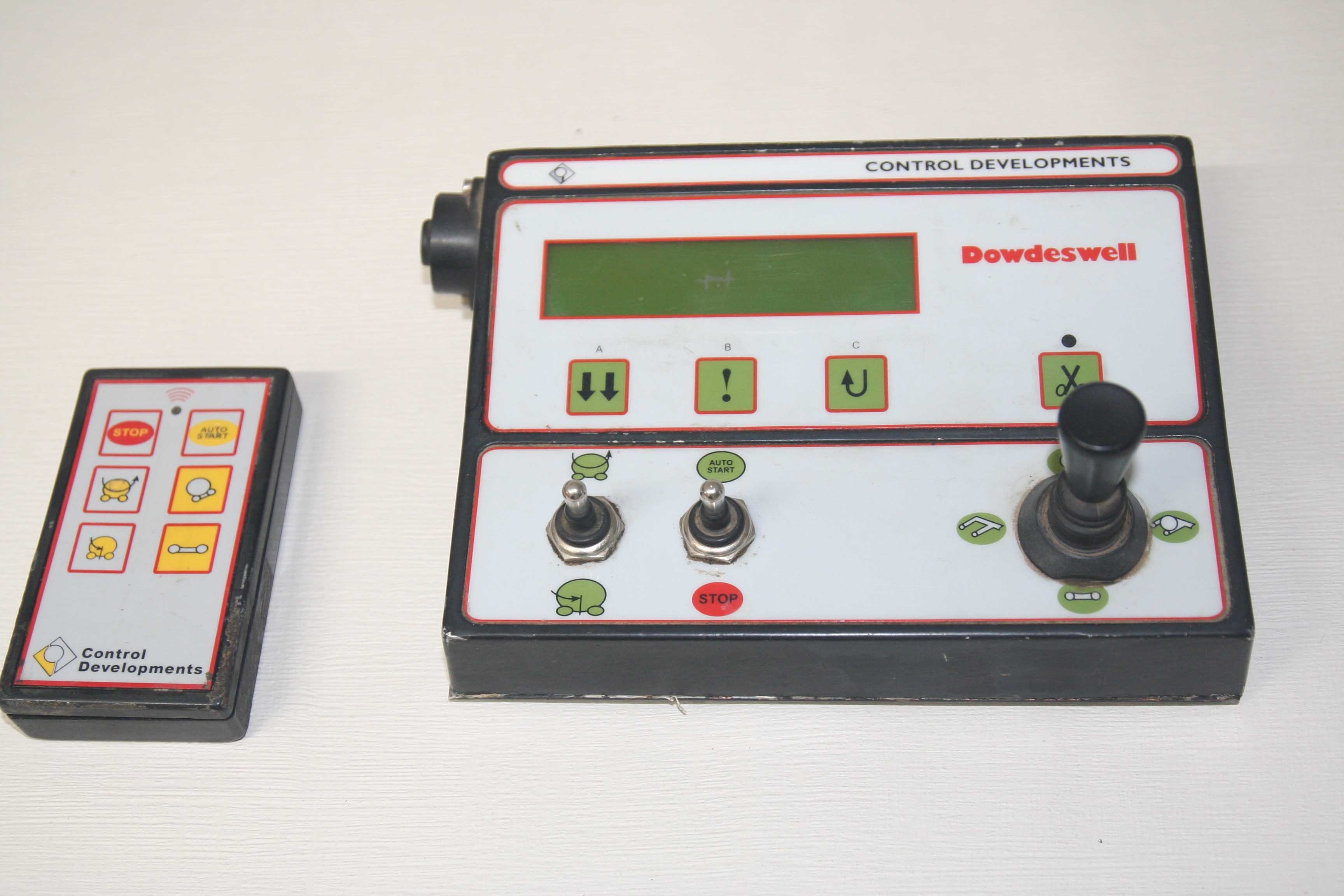

Dowdeswell Wrap Control

• Can be converted to RF Control.
• Old control box needs returning to our offices for modifictaion..
• No sunlight problems again, simple 4 function remote.
• New style large reciever box.
