Digital Seed Drill Control

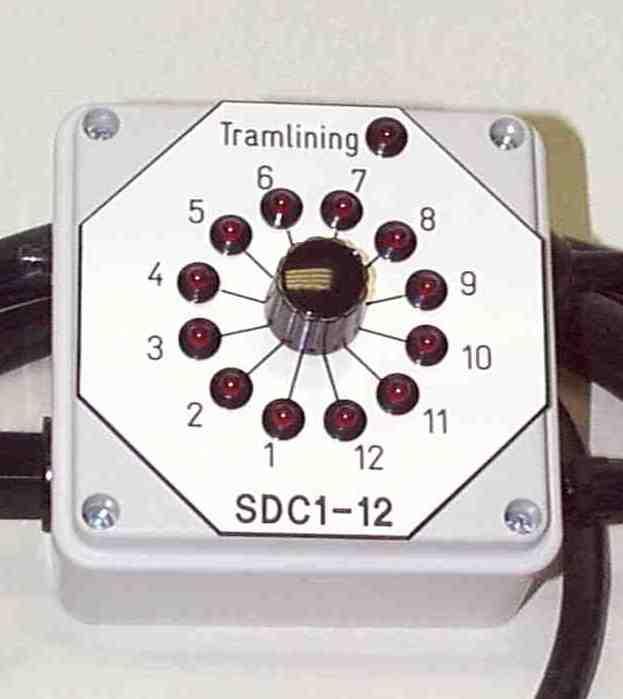

Basic Unit comes complete with a 12 LED panel, input and output cables, on/off switch, buzzer, a count sensor and magnet for automatic headland increment and a switch for sensor isolation or manual count.

The unit is easily placed within the tractor cab with the output cable connected to either a cut off clutch or solenoid. The sensor and magnet fit to the drill so that on each headland the sensor and magnet come within 20mm of each other, this increases the remote count. The unit counts headland turns through the sensor and the target count is set on the control panel on the front of the unit. When the target count is met the audio buzzer will sound and tramline light will illuminate and the 12v output energises the seed cut off clutch or solenoid.

The manual switch will enable the increment of count to enable to begin tramlining in the middle of the sequence and also disables the remote count.

The unit will accurately give an audible and visual signal for tramlining with a controlled cut off. It is easy to install and extremely cost effectiveComplete Kit –12 LED control box, power cable, magnetic sensor and magnet
