DC Linear Actuator Control

Small DC controller range

  • DC input Switched DC output.
  • A range of voltages for a range of DC Actuators.
  • Relay and Solid State switching Options.
  • Terminal or Wired cable inputs.
  • A wide variety of input switching and control options.

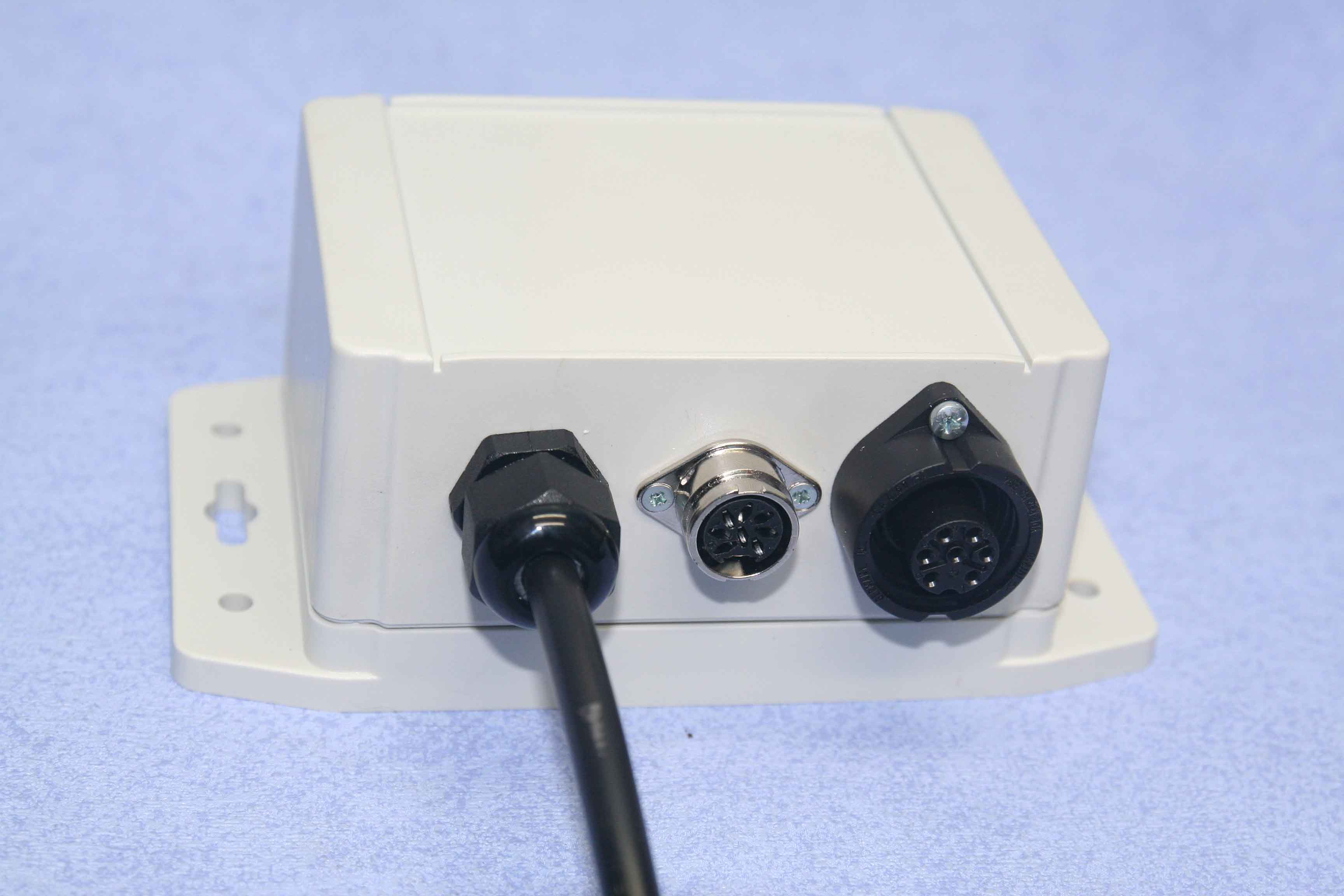

DC Control - DC Actuator - Handset Input - Limit switch end of stroke

  • 12 volt or 24 volt option
  • LA14 actuator with normally open limit switches
  • High current output, low current switching
  • 7 core output, pre-wired to normally open limit switches supplied if LA14 Actuator ordered.
  • Small robust water tight case, robust connectors.

Part number

Example - HAC-D1-2H-LS-XXX

  • HAC - Hollin Actuator Control
  • D1 - DC 12 volt, D2 - DC 24 volt
  • 2H - 2 button Handset
  • LS - Limit switch inputs
  • XXX - options cable lenghts connectors etc.

Input/Output 12 volt 24 volt
Maximum Amps 30 Amp 20 Amp
Applicable Actuators LA14 with normally/open sensors
  DC Actuators with external limit switches

Input Drive Signal Hiwin 2 button Handset
Input limit Switches Normally open, close to stop
Output Cabling 7 pin waterproof Connector 2m or 2 core power and 3 core limitswitch cable
Input Cabling 2 core 1.5mm2 2m long

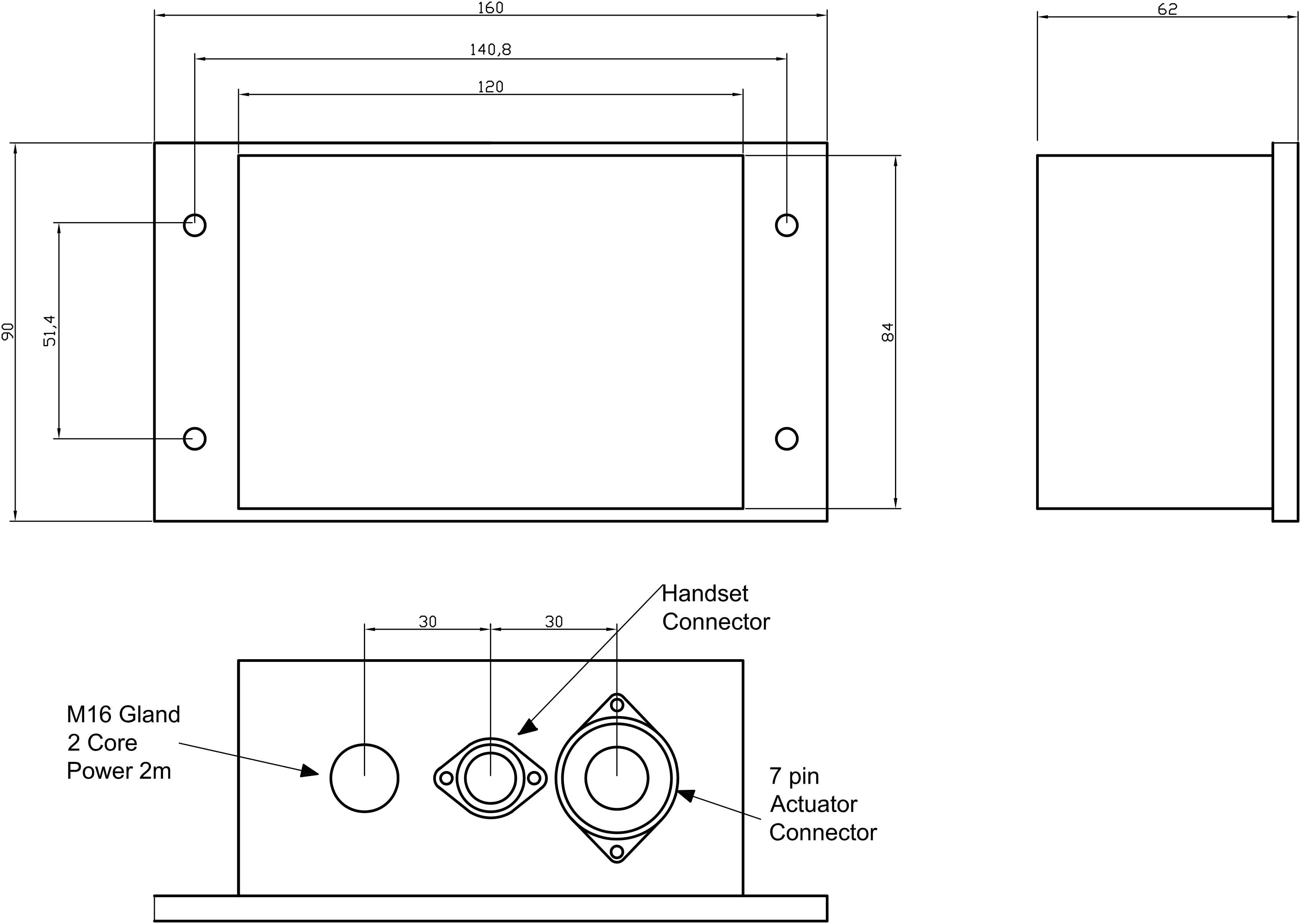

Dimensions as below

HAC-DX-2H-LS-CBL Datasheet Download
