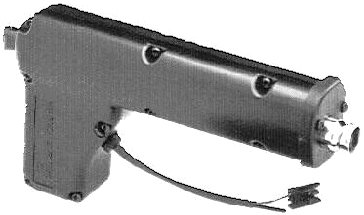

Electrak E050 - Weatherproof high featured mini.

The E050 is a compact, quiet, and low cost DC actuator suitable for a variety of markets and applications. This feature packed actuator has a very short retracted length for applications where space is at a premium and maintenance requirements are minimal. Ideal for quiet environments such as medical or office applications.
Performance Specifications Standard Version Q-Version
Input Voltages (VDC) 12, 24, 36 24
Max Stroke Length: mm (in) 200 (8.0)
Max Dynamic Load: N (lbf) 510 (112)
Max Static Load: N (lbf) 1020 (224)
Max No-Load Speed: mm/s (in/s) 48 (1.9) 38 (1.5)
Max Full-Load Speed: mm/s (in/s) 37 (1.45) 30 (1.2)
Full load duty cycle @ 20 ºC (70 ºF) 25%
Screw Type Worm
Operating temperature: ºC -30 to +80
Protection Class IP56 IP51
Compatible Controls

E050 Highlights Features

  • Durable, corrosion-free black plastic housing
  • End of stroke internal limit switch protection
  • Mid stroke overload clutch protection
  • Dynamic braking at end of stroke
  • Minimum estimated life of 40,000 cycles
  • Auto reset thermal switch motor protection
  • Clevis mounting
  • Internally Restrained
  • CE Certification (based on region)

Options

  • Potentiometer 10 kOhm
  • Cross holes rotated 90º
  • White housing
  • Variety of compatiable controls
Electrak E050 - PDF Datasheet Download
