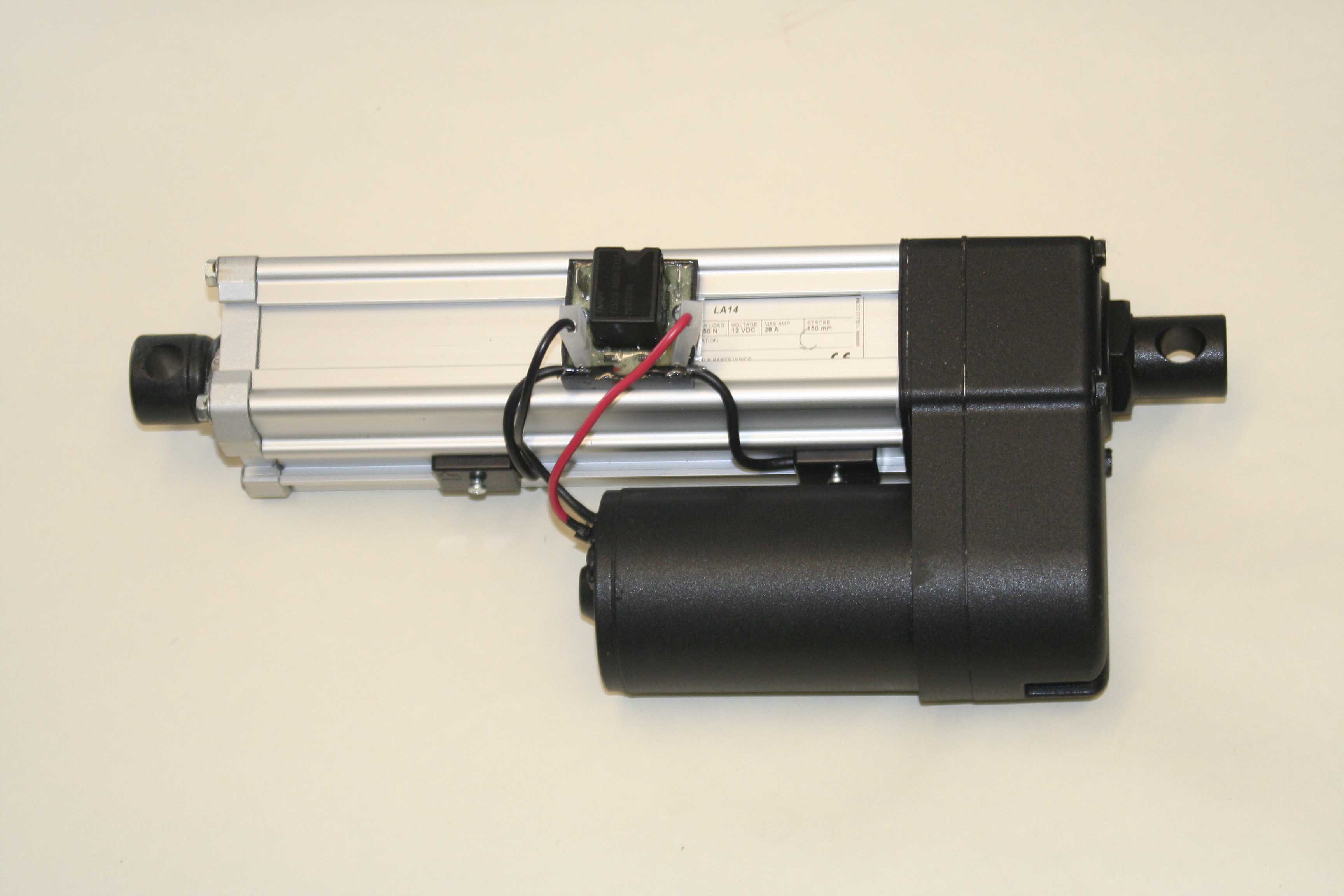

The LA 1 actuator is completely self-contained and sealed for indoor and outdoor use. Functionally, these models are easily interchanged with comparably sized hydraulic or pneumatic cylinders. Used on intermittent duty applications Electrak 1 actuators provide consistent, repeatable performance in the most rigorous operating conditions including extreme temperatures and humidities.

Performance Specifications	Acme Screw	Ball Screw
Input Voltages: VDC	12 Volt, 24 volt, 36 volt and 90 volt
Input Voltages: VAC (50 Hz)	110 single phase 60Hz 230 @ 1phase 400 @ 3phase
Max Stroke Length: mm (in)	600 (24.0)
Max Dynamic Load: N (lbs)	2250 (500)	6800 (1500)
Max Static Load: N (lbs)	11350 (2550)	18000 (4050)
Max No-Load Speed: mm/s (in/s)	48 (1.9)	52 (2.0)
Max Full-Load Speed: mm/s (in/s)	38 (1.5)	45 (1.77)
Full load duty cycle @ 25ºC (77ºF)	25%
Operating temperature: ºC (ºF)	-25 to +65 (-15 to +150)
Protection Class: Standard (optional)	IP66
Compatible Controls	Varies per model Use our Product Selector for proper selection

Highlights

Aluminium cover tube with T-slot
Clevis mounting, trunnion possible
Anti-rotation mechanism
Overload clutch
Auto reset thermal overload motor protection
Holding brake on ball screw models
Self-locking acme screw models
Safety nut on all ball screw models
CE certification

Potentiometer
Hand wind
Anti-coast brake

LA14 - - PDF Datasheet Download
