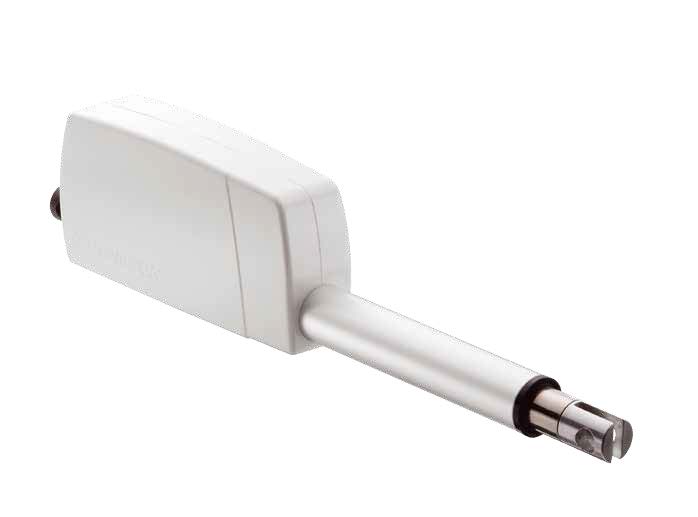

Whisper Trak - Mid Range Quiet and Waterproof.

Thomson Whisper Trak linear actuators are designed to incorporate features that enable machine builders the greatest flexibility in a variety of applications. With sleek and compact design, these actuators offer environmental protection sealing, maintenance free lifetime operation, and various position control capabilities. The result is the optimum actuator for the applications it is built to serve.
Performance Specifications Standard Version
Input Voltages (VDC) 12, 24
Max Stroke Length: mm (in) 500 (20.0)
Max Dynamic Load: N (lbf) 2000 (450)
Max Static Load: N (lbf) 2000 (450)
Max No-Load Speed: mm/s (in/s) 5.8 (0.23)
Max Full-Load Speed: mm/s (in/s) 4.0 (0.16)
Full load duty cycle @ 20 ºC (70 ºF) 10%
Screw Type Acme
Operating temperature: ºC -25 to +40
Protection Class IP67
Compatible Controls Link to Controls Page

Whisper Highlights Features

  • Durable, corrosion-free black plastic housing
  • End of stroke internal limit switch protection
  • Mid stroke overload clutch protection
  • Dynamic braking at end of stroke
  • Minimum estimated life of 40,000 cycles
  • Auto reset thermal switch motor protection
  • Clevis mounting
  • Internally Restrained
  • CE Certification (based on region)

Options

  • Potentiometer 10 kOhm
  • Cross holes rotated 90º
  • White housing
  • Variety of compatiable controls
Whisper - PDF Datasheet Download
