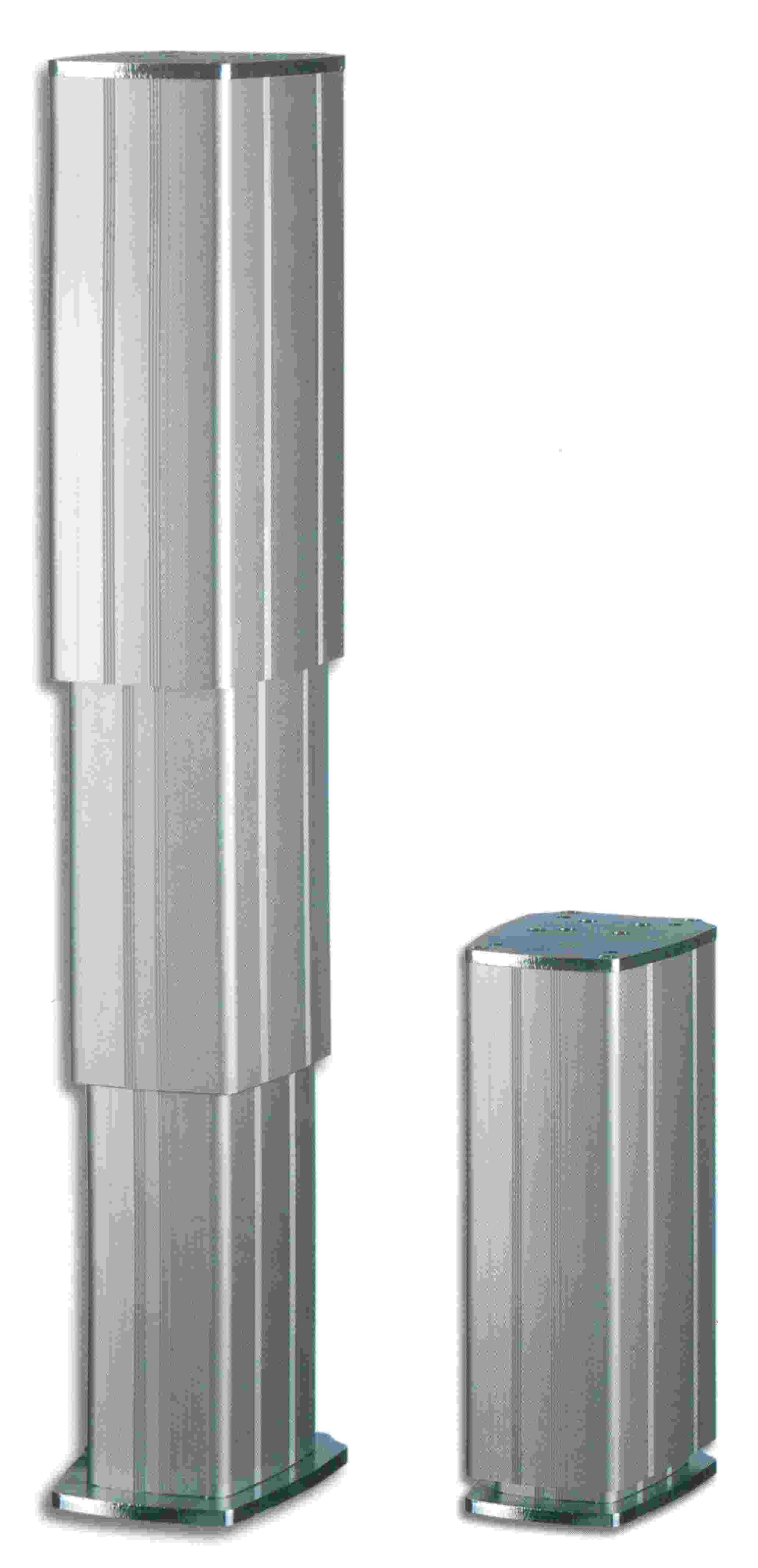

TC16 Telescopic Column.

The TC16 lifting column is a self-supporting, lightweight unit made for domestic, office, and medical applications where quiet operation is required. Built around a combination of double-telescoping lead screws with belt driven gearing, this unique design ensures a high load torque capacity. It also features a very short retracted length and a low stroke-to-retracted length ratio.
Performance Specifications
 TC16
Input Voltages (VDC)
 24 volt
Max Stroke Length: mm
600mm (400mm Standard)
Max Dynamic Load: N
2000N
Max Static Load: N
4000N
Max No-Load Speed: mm/s

Max Full-Load Speed: mm/s

Full load duty cycle @ 25 ºC
25%
Screw Type
 Acme Telescopic
Operating temperature: ºC
-25 to +65
End of Stroke Protection
 Limit switches
Encoder feedback
 Option
Protection Class
 IP44
Compatible Controls
 Link to Controls Page



TC16 Highlights

  • Extruded anodized aluminum column
  • Internally restrained
  • Dynamic braking
  • Holding brake
  • Limit Switches end of stroke protection
  • Motor cable and connector
  • CE certification
  • EMC certification for medical applications
  • Feedback encoder
