E150

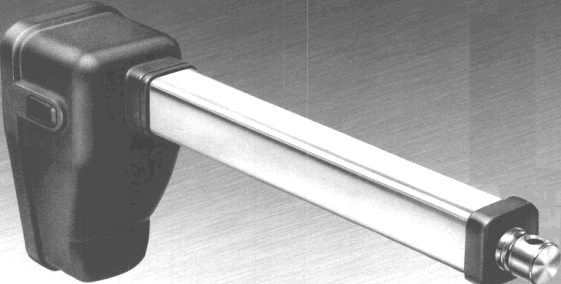

Lightweight IP56 Linear Actuator with strokes up to 400mm and adjustable end of stroke limit switches

  • Motor 12, 24, 36 volt DC.
  • Strokes Standard strokes of 100, 150, 200 300 and 400mm usually available ex-stock.
  • 3 different screw pitches available.

On this Actuator there are available the following options,

  • Load up to 2000 N (450 Lbs or 200 Kg).
  • Static Load to 4000N.
  • Speeds from 13 to 71 mm inches per second.
  • Weather protected to IP56.
  • Stainless Steel Extension tube.
  • Adjustable end of stroke limit switches available
E150 Technical
Available Strokes

100 to 400mm
Load Range

500, 1000, 2000N
Speed Range

13 - 71 mm/sec
Motor Voltages

12, 24, 36 Volt DC
Static Load
  up to 4000N
Duty Cycle
  25%
Environment
   -30 to 65 degree C, IP56
Retract Length

Stroke +165mm PO and LS versions 38mm Longer

Electronic Controls
Power Supply Options

Battery or Tr ansformer
Switch

  • Reverse Pole Switch 3 wire
  • Electronic Limit Switches
  • Remote Switching
  • Handset Controls
/
Position Control

  • Potentiometer F eedback
  • Encoder Feedback
  • Follower Control
  • MultiPosition Controls

Sample Applications,

  • Lever Movement
  • Rear Door Openers
  • Step movement
  • Ramp deployment
  • Grass cutter height adjustment

DownLoad E150 Data Pages only
