Electronic Throttle System A version of the standard electronic follower circuit that is used as a remotely variable throttle control. Basically a knob, lever, foot pedal can control the position of the Actuator to pull a cable or move a lever on the engine throttle input. The kit comprises of three elements. Input signal consisting of a unit to give a variable voltage signal to the control. Electronic control unit, this gives an output to vary the position of the throttle for the given input. Electromechanical device to Actually move the engine throttle. |
|||
| Input device options. | |||

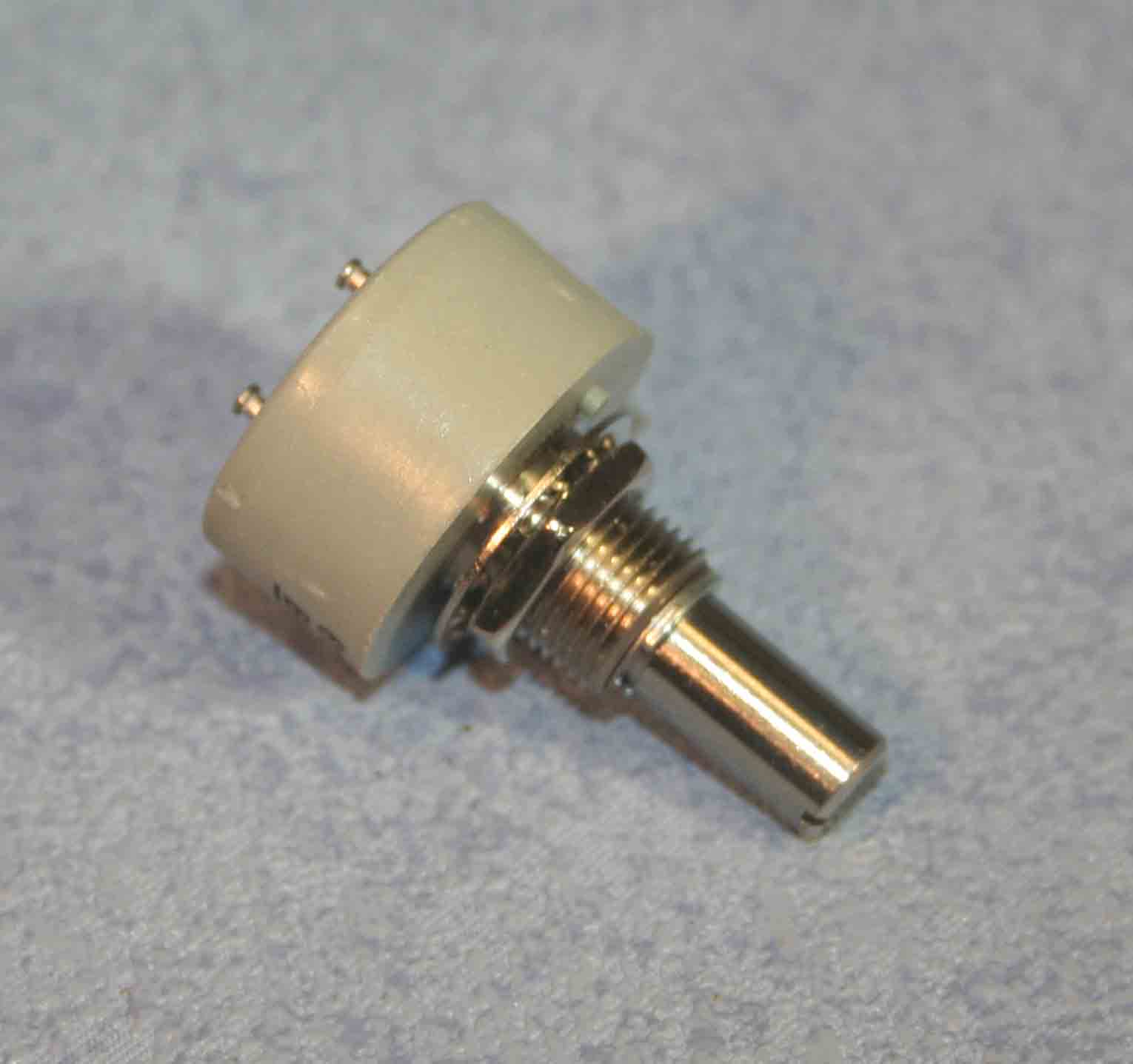

Standard Rotary potentiometers. A range of shafts, angles etc, |

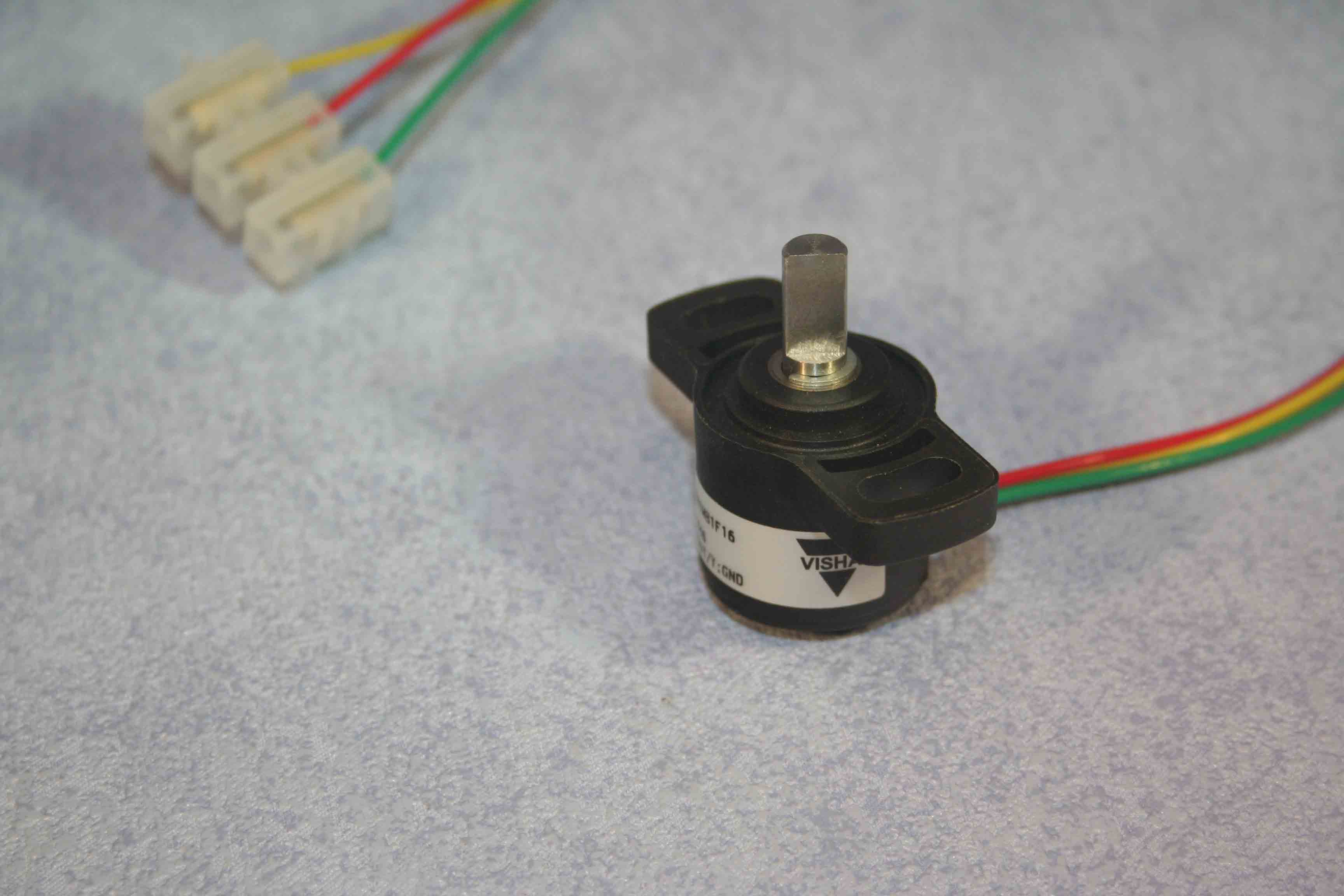

Specialist Throttle potentiometers. Long life specific designs. |

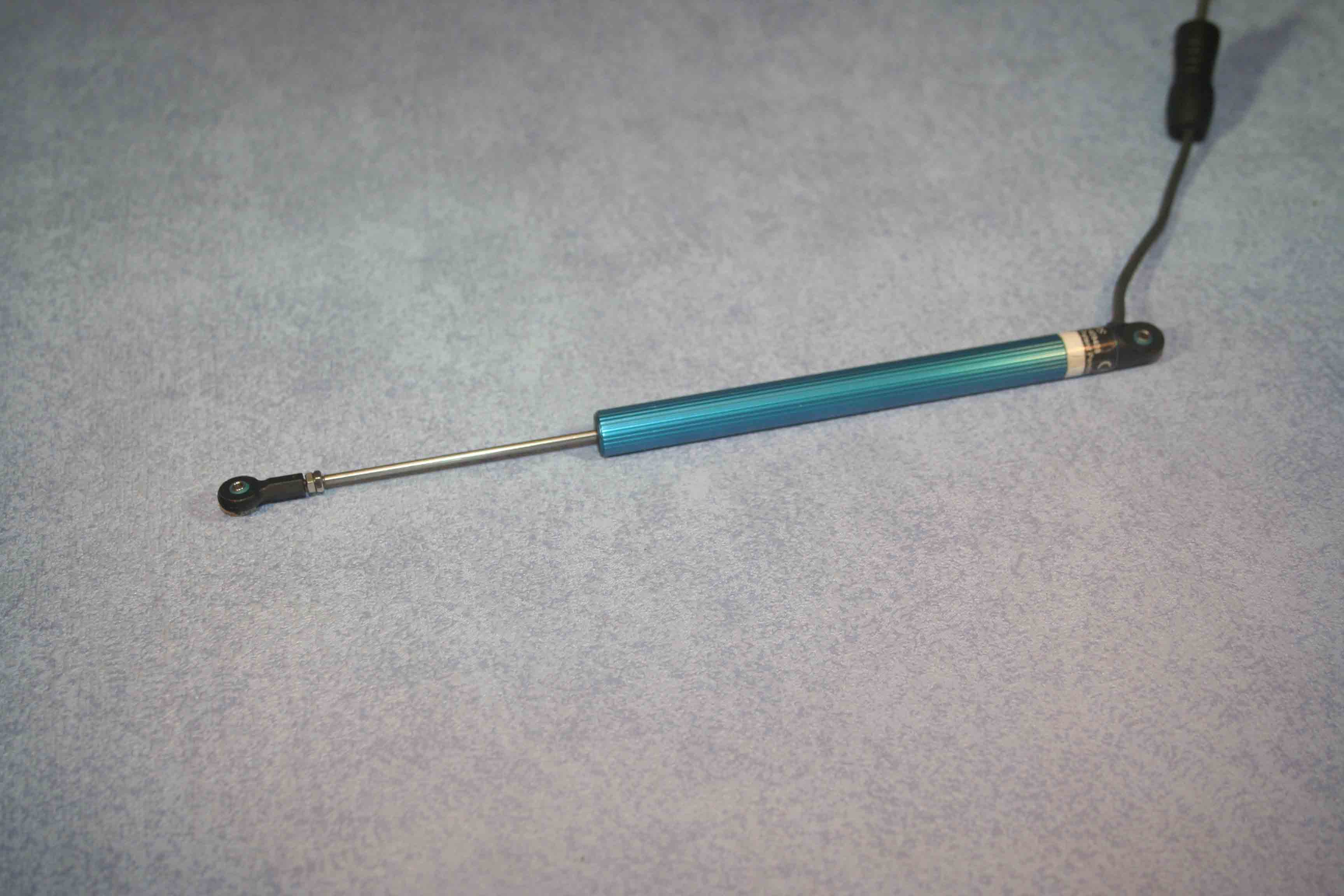

Linear Potentiometer. Link easily to existing throttle leaver |

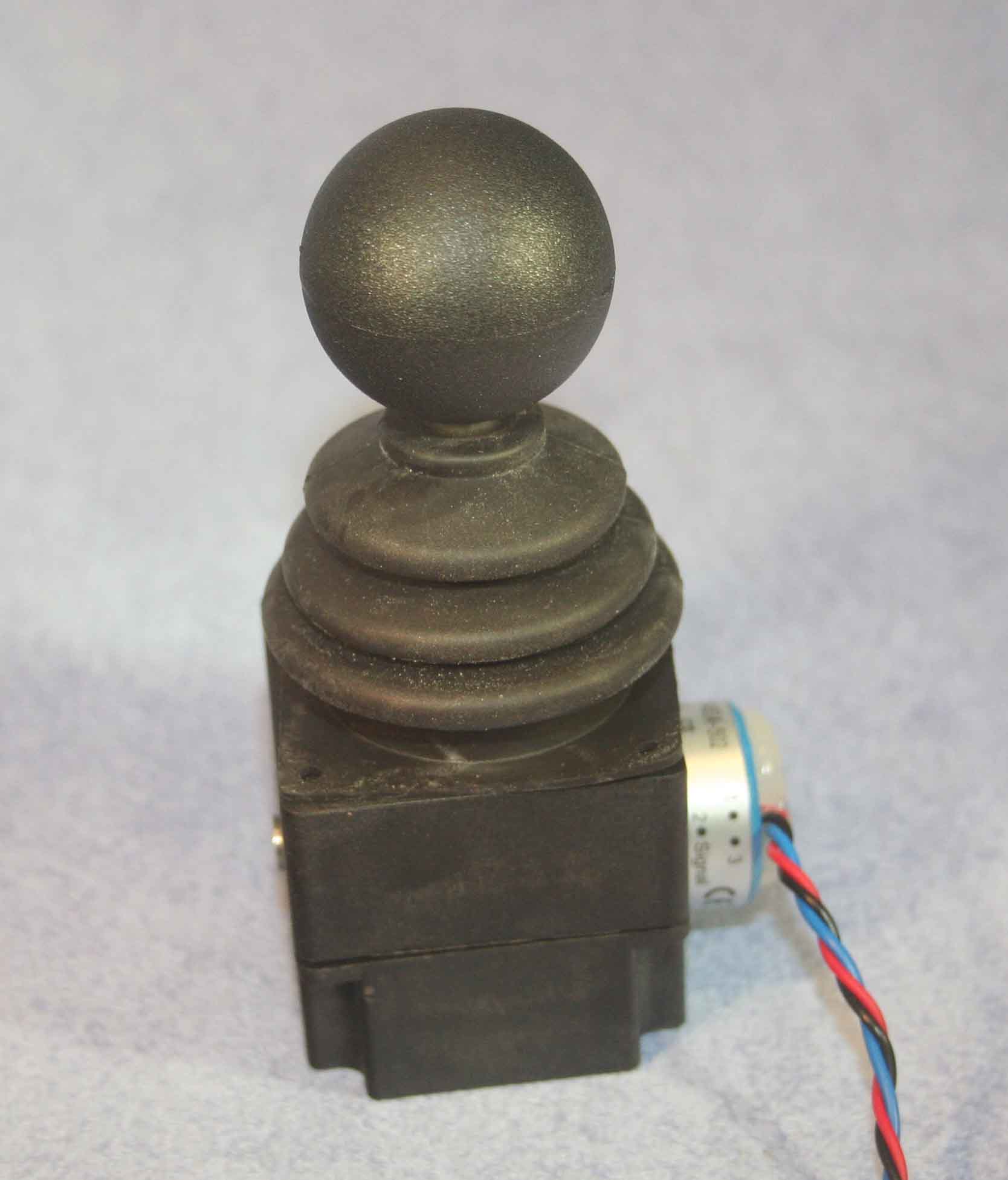

Joystick Controllers. Modified to return to zero on release. |

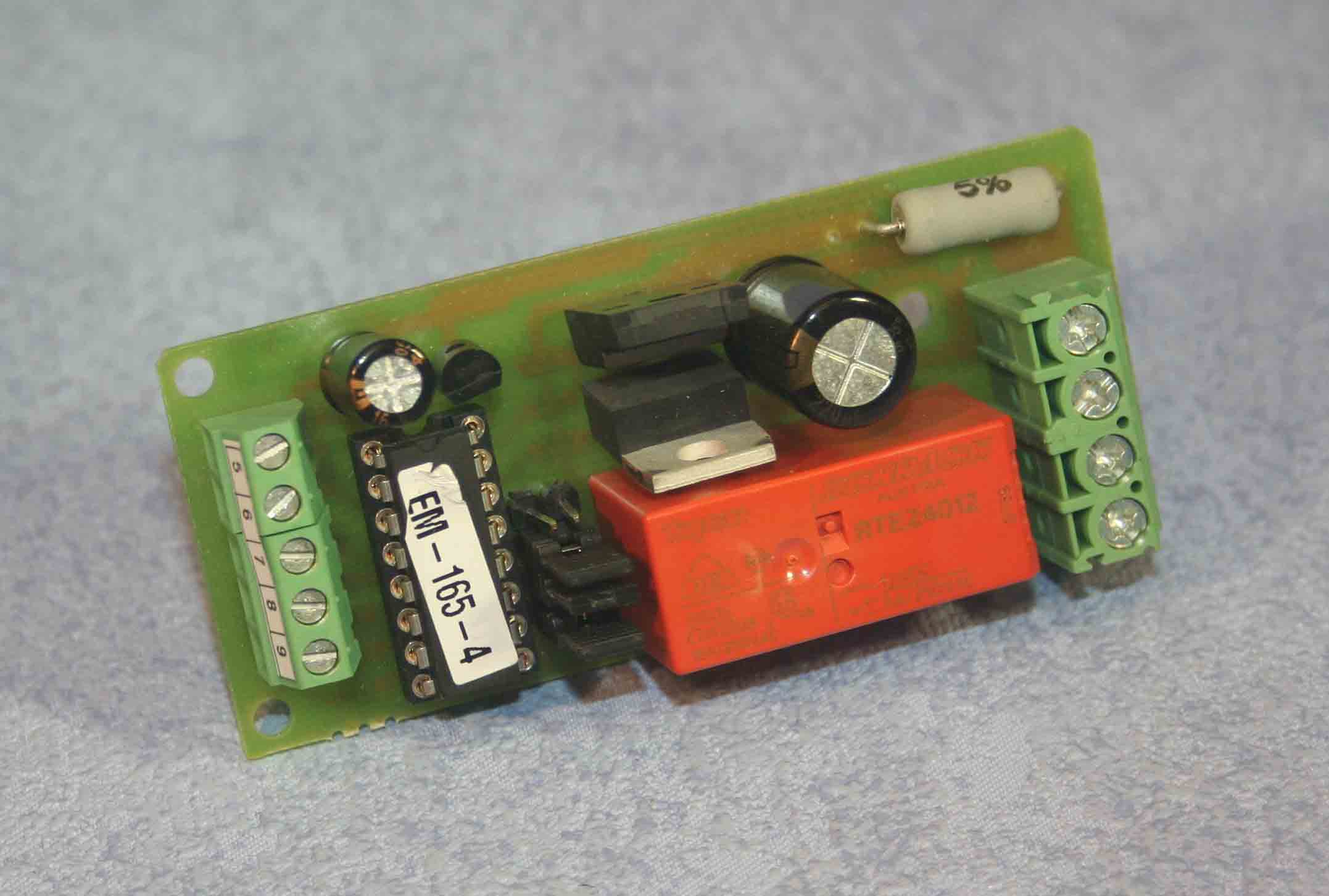

| Electronic balance follower circuit | |||
Usually potted with adjustable strokes and mounted in an enclosure. |
|||
| Mechanical throttle units | |||

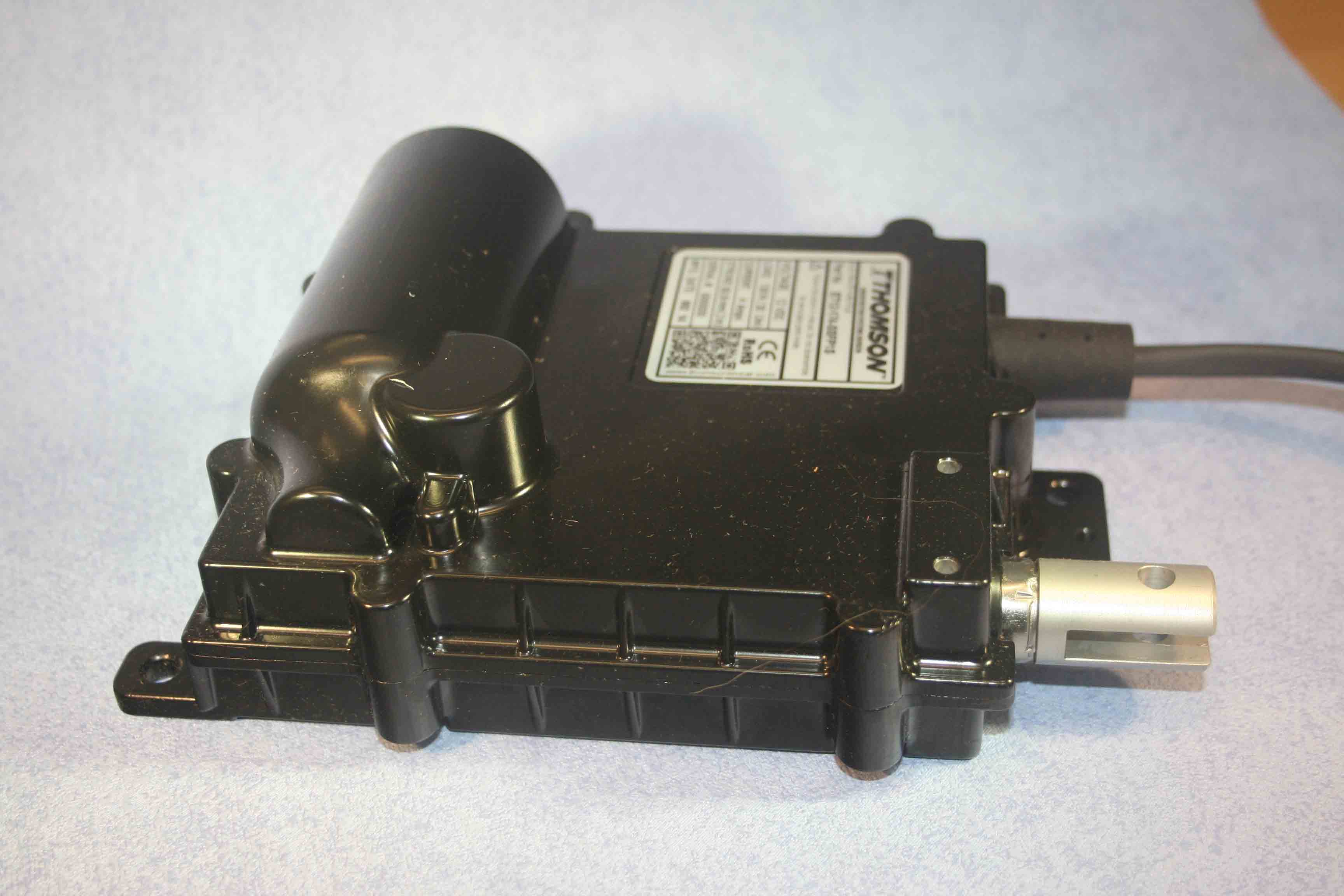

Thomson specific throttle Actuator |

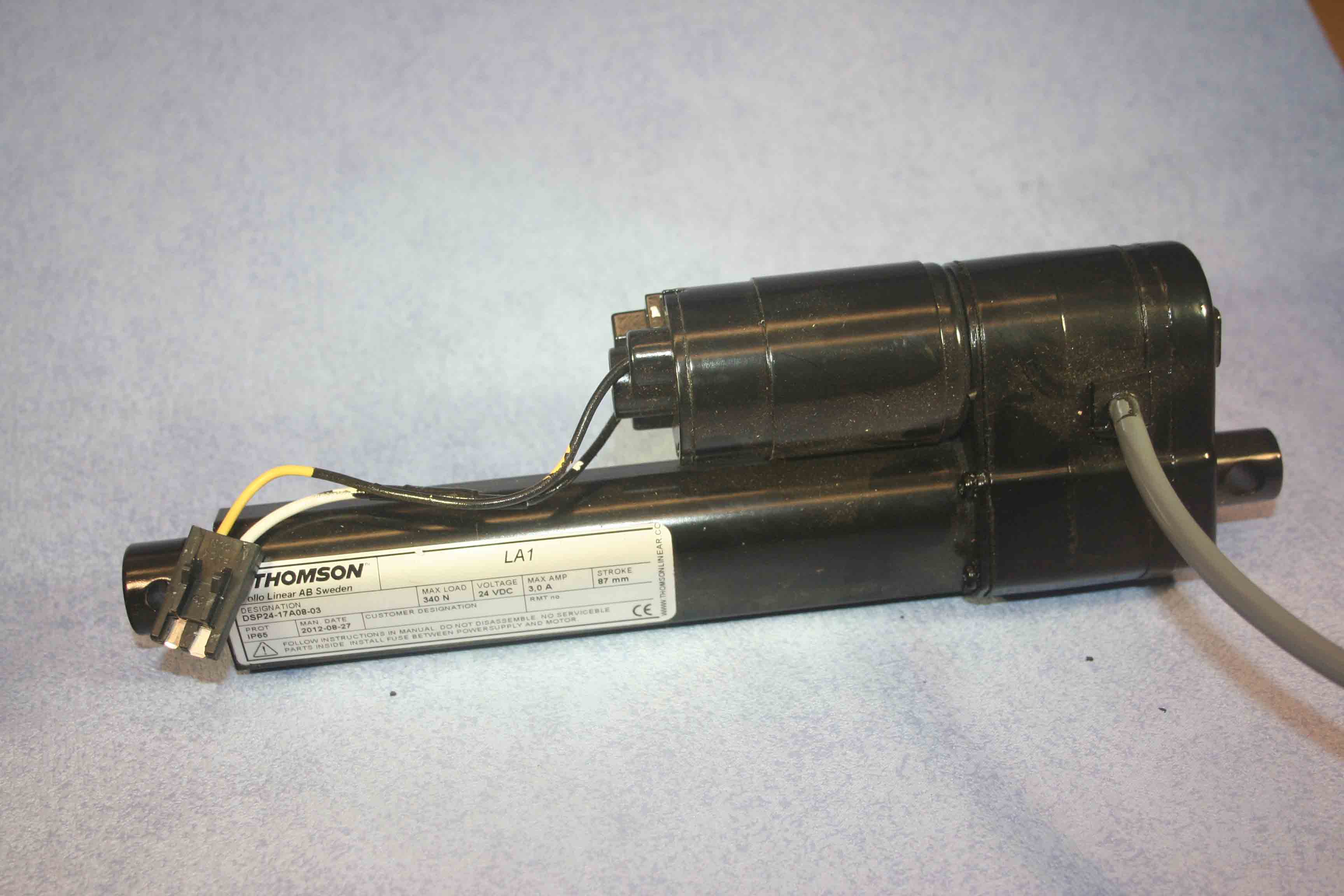

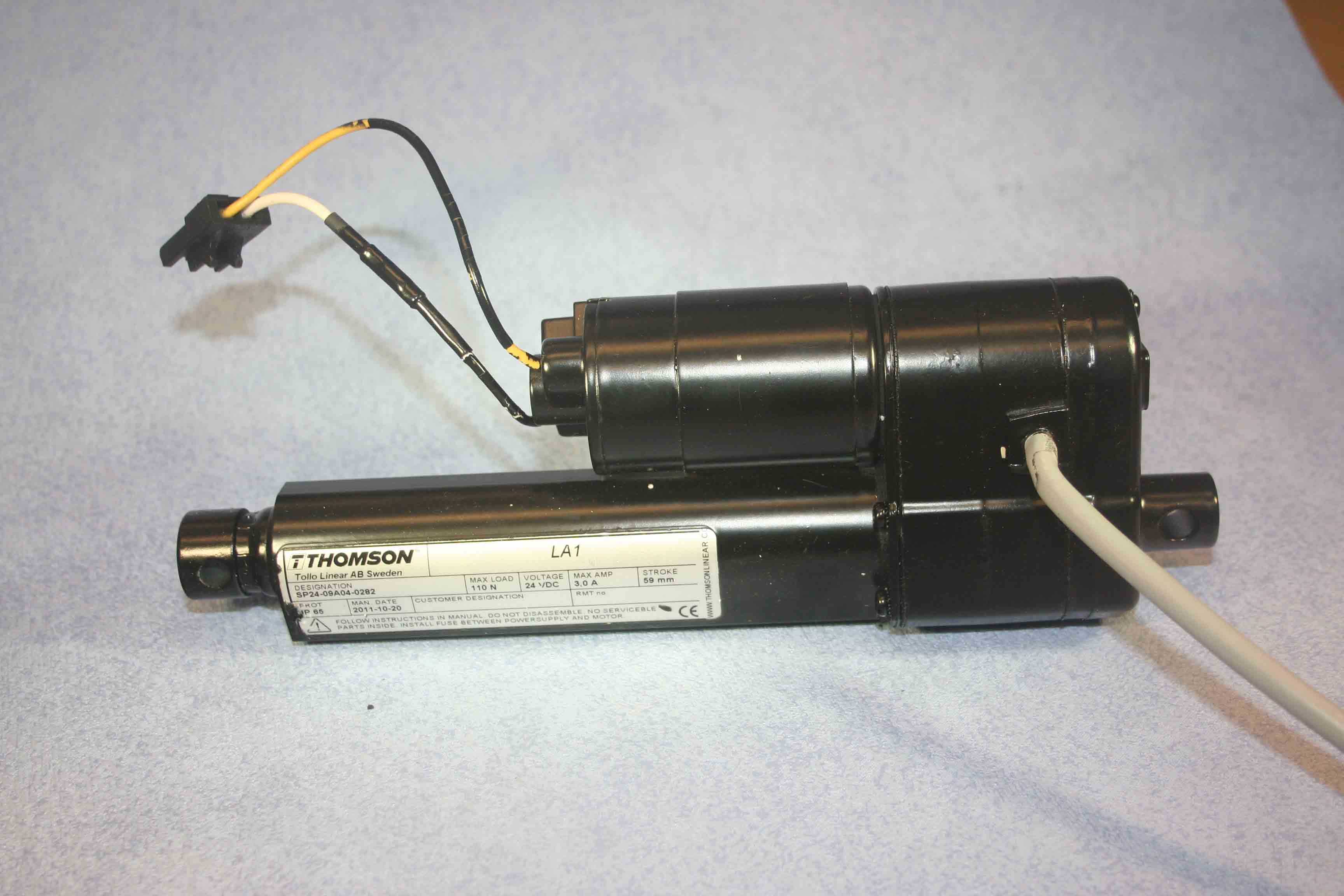

Fast 2 inch Feedback LA1 |
Different strokes and voltages ex-stock |
|
Basic Kit approx £375.00 |
|||
