Small DC controller range

• DC input Switched DC output.
• A range of voltages for a range of DC Actuators.
• Relay and Solid State switching Options.
• Terminal or Wired cable inputs.
• A wide variety of input switching and control options.

Basic Switches for Actuator Motors

• Pre wired double pole switch
• Momentary off Momentary 3 position
• Switches all two wire linear Actuators up to 30 Amps
• 4 terminals, 2 for power 2 for Actuator- Simple

Basic Switches for Actuator Motors supplied in an enclosure

• Pre wired double pole switch
• Momentary off Momentary 3 position
• Switches all two wire linear Actuators up to 30 Amps
• 4 terminals, 2 for power 2 for Actuator- Simple

Curly lead Handset Switching.

• DC input - DC switched Actuator Output.
• Simple relay switching.
• Relay switching incorporating limit switch inputs.
• Relay Switch with ELS current level switching adjustable

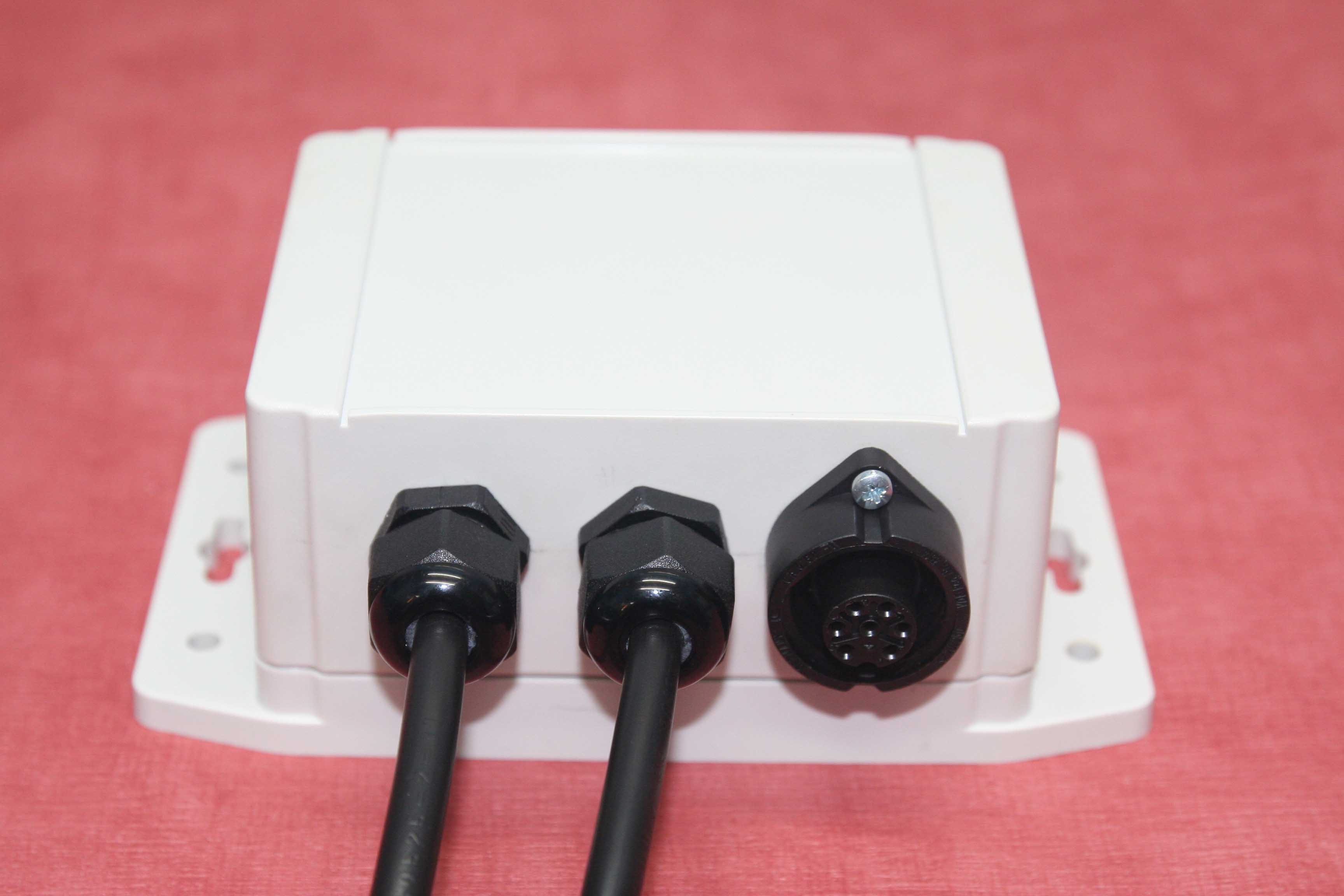

Limit Switch control Box External switching

• DC input - DC switched Actuator Output.
• Simple relay switching with solid state power switch.
• Relay switching incorporating external limit switch inputs.
• Direction and relay switching via internal edge connector
• Works with LA14 and normally open limit switches.

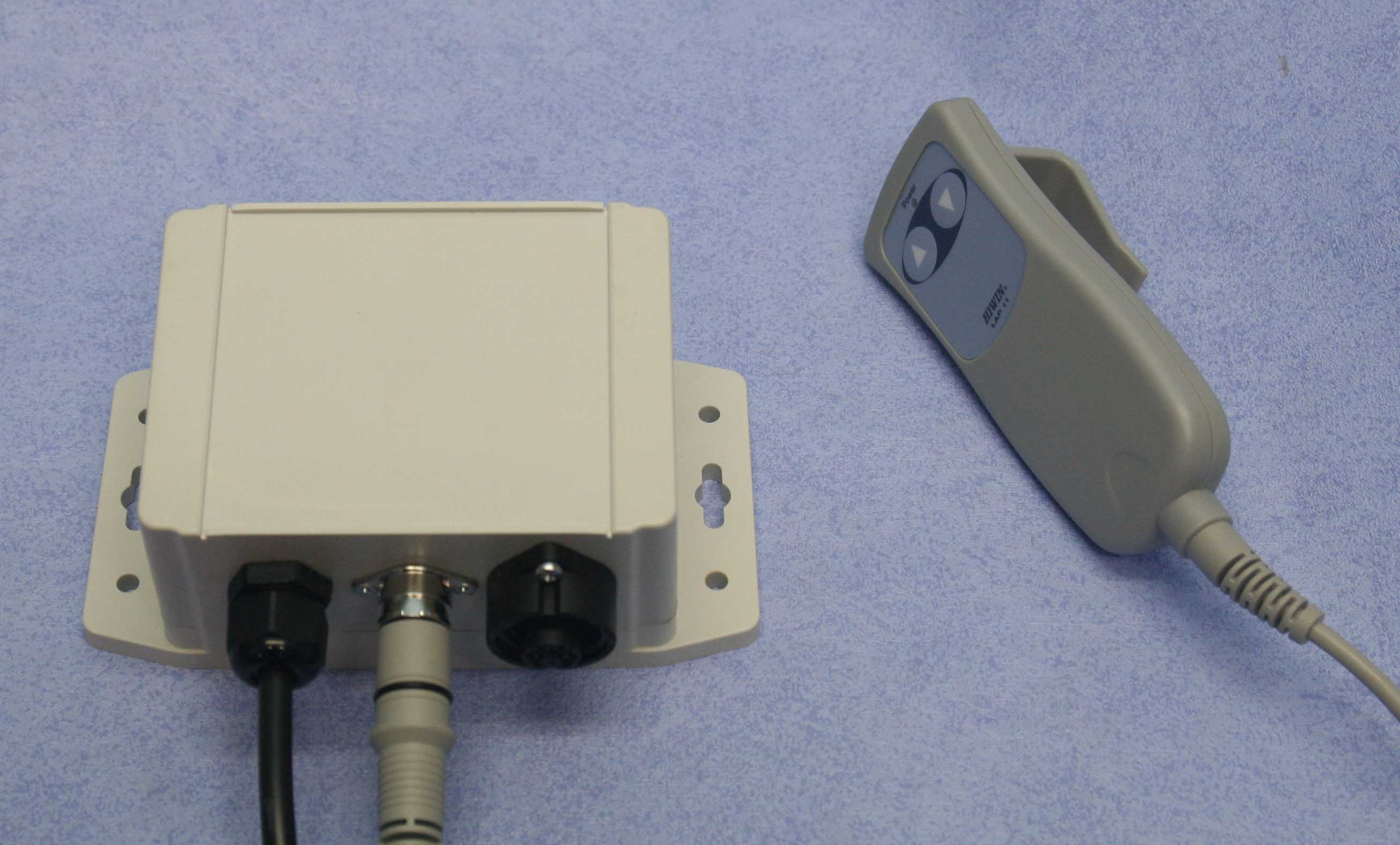

Limit Switch Control Box Handset switching LA14 with limit switches

• DC input - DC switched Actuator Output.
• Simple relay switching with solid state power switch.
• Relay switching incorporating external limit switch inputs.
• Direction and relay switching via supplied two button handset
• Works with LA14 and normally closed limit switches, 7 pin connector.

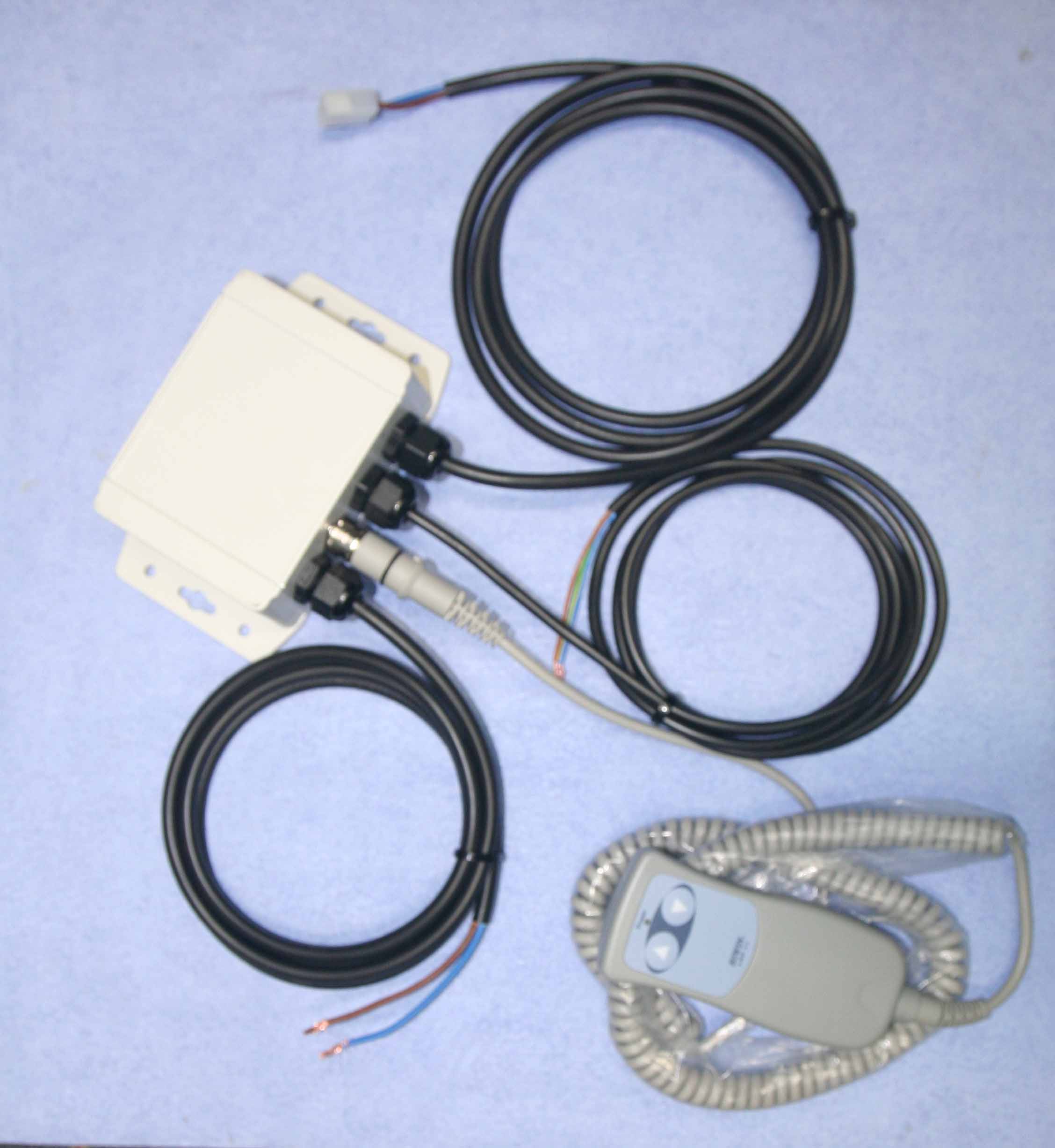

Limit Switch Control Box Handset switching any DC Actuator with external LS.

• DC input - DC switched Actuator Output.
• Simple relay switching with solid state power switch.
• Relay switching incorporating external limit switch inputs.
• Direction and relay switching via supplied two button handset
• Works with any DC actuator and normally closed limit switches, cables.
